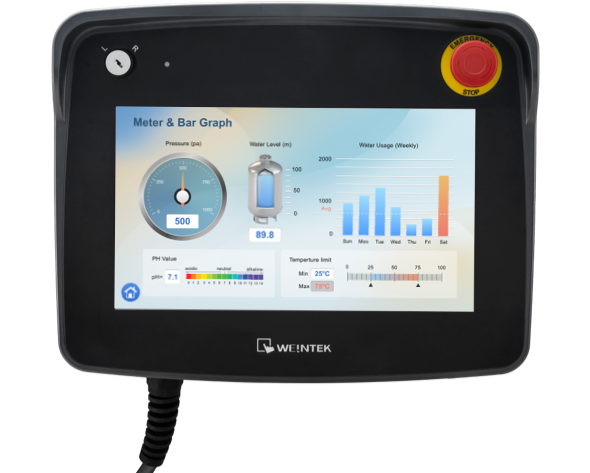

Display
Display 10.1" WVA
Resolution 1024 x 600
Brightness (cd/m2) 350
Contrast Ratio 1000:1
Backlight Type LED
Backlight Life Time >50,000 hrs.
Colors 16.7M
LCD View Angle (T/B/L/R) 89/89/89/89
Pixel Pitch (mm) 0.2175 (H) x 0.2088 (V)
Touch Panel
Type 4-wire Resistive Type
Accuracy Active Area Length(X)±2%, Width(Y)±2%
Memory
Flash 4 GB
RAM 1 GB
Processor
Processor Quad-core RISC
I/O Port
SD Card Slot SD/SDHC
USB Host USB 2.0 x 1
Ethernet Port 10/100 Base-T x 1
WiFi N/A
COM Port COM2 RS-485 2W/4W
RS-485 Dual Isolation N/A
CAN Bus N/A
Audio Output N/A
Safety & Control Switches
Key Switch Yes
Emergency Stop Switch Yes
3-Position Enable Switch Yes
RTC
RTC Built-in
Power
Input Power 24±20%VDC*
Power Isolation Built-in
Power Consumption 480mA@24VDC
Voltage Resistance 500VAC (1 min.)
Isolation Resistance Exceed 50MΩ at 500VDC
Specification
PCB Coating Yes
Enclosure Plastic

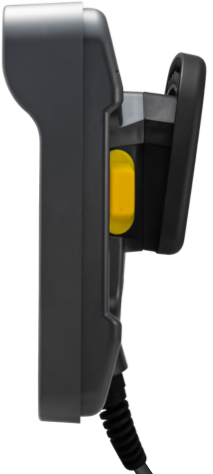

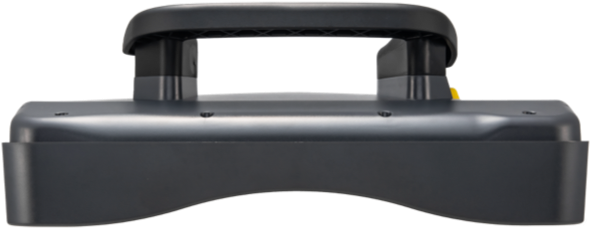

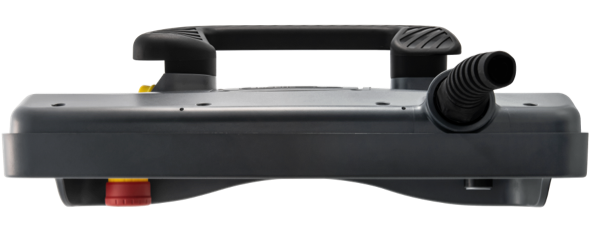

Dimensions WxHxD 302.7 x 240 x 116.8 mm
Weight Approx. 1.6 kg

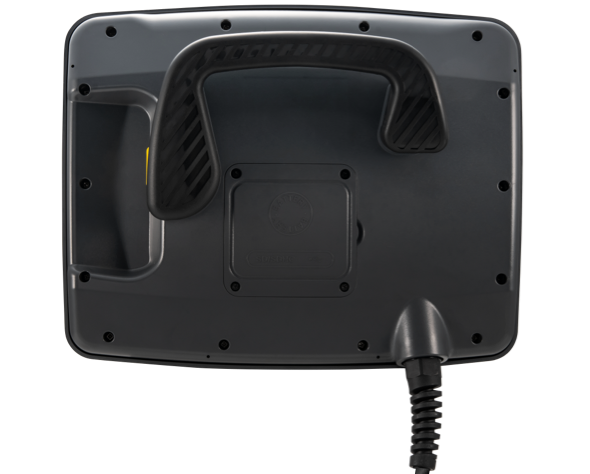

Mount Wall Mounting Bracket
Environment
Protection Structure IP65
Max. Fall Height 1.2 m
Storage Temperature -20° ~ 60°C (-4° ~ 140°F)
Operating Temperature 0° ~ 50°C (32° ~ 122°F)
Relative Humidity 10% ~ 90% (non-condensing)
Vibration Endurance 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
Certificate
CE CE marked
UL N/A
Software
Weincloud EasyAccess 2.0 (Optional)
Dashboard (Optional)
* The Handheld HMI must be powered solely through the connection box.
