Display
Display 4.3" WVA
Resolution 800 × 480
Brightness (cd/m2) 530
Contrast Ratio 800:1
Backlight Type LED
Backlight Life Time >30,000 hrs.
Colors 16.7M
LCD View Angle (T/B/L/R) 80/80/80/80
Pixel Pitch (mm) 0.1188 (H) × 0.1122 (V)
Touch Panel
Type 4-wire Resistive Type
Accuracy Active Area Length(X)±2%, Width(Y)±2%
Memory
Flash 4 GB
RAM 1 GB
Processor
Processor Quad-core RISC

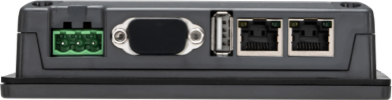

I/O Port
SD Card Slot N/A
USB Host USB 2.0 x 1
Ethernet Port LAN 1: 10/100/1000 Base-T × 1
LAN 2: 10/100 Base-T × 1
COM Port N/A
RS-485 Dual Isolation N/A
CAN Bus N/A
Audio Output N/A
RTC
RTC Built-in
Power
Input Power 24±20% VDC
Power Isolation Built-in
Power Consumption 510mA@24VDC
Voltage Resistance 500VAC (1 min.)
Isolation Resistance Exceed 50MΩ at 500VDC
Specification
PCB Coating Yes
Enclosure Plastic
Dimensions WxHxD 128 × 102 × 32 mm
Panel Cutout 119 × 93 mm
Weight Approx. 0.27 kg
Mount Panel mount
Environment
Protection Structure UL Type 4X (indoor use only) / NEMA4 / IP66 Compliant Front Panel
Storage Temperature -20° ~ 60°C (-4° ~ 140°F)
Operating Temperature 0° ~ 50°C (32° ~ 122°F)
Relative Humidity 10% ~ 90% (non-condensing)
Altitude (Air Pressure) 3,000 m
Vibration Endurance 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
Certificate
CE CE marked
UL cULus Listed
Software

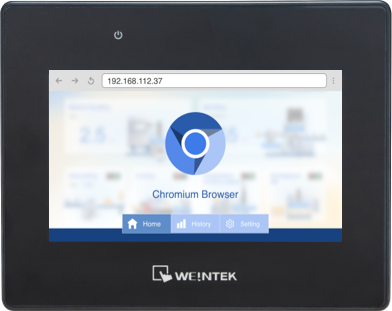

Browser Chromium 132 (Upgradable)*
Weincloud EasyAccess 2.0 (Optional)
* The built‐in browser does not support websites requiring Java Applets or the Java SDK.
* For best compatibility, use websites developed with standard HTML5.
